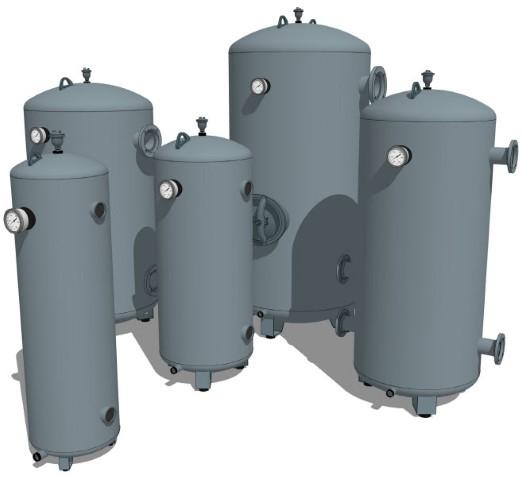

System Efficiency Buffer Tank-V200SEB
V200SEB-3N
- Brand
- Cemline
Factory Order Factory Order – Not in stock. Lead times vary. Contact JMP for current lead time.
Not currently in stock in any warehouses
Description
Cemline System Efficiency Buffer Tank is a primary/secondary buffer tank designed to improve heating system efficiency, reduce boiler short cycling, provide hydraulic separation, and assist with air separation. This configuration is listed as 200 Gal with 30" diameter, 72" long body, and 3" NPT connections.
Key Features
- Primary/Secondary Buffer Tank – Designed to act as a primary/secondary hydraulic separator.
- System Efficiency – Helps prevent boiler short cycling and improve heating system operation.
- Air Separation Function – Cemline states SEB tanks remove air from the heating system, eliminating the need for a separate air separator.
- ASME Pressure Vessel – SEB standard options include ASME pressure vessel construction rated 125 PSI at 400°F.
- Insulated Jacket – Field-installed insulated jacket is included in the product configuration.
- Thermometer and Air Vent – Product configuration includes thermometer and air vent.
Specs
| Acceptance Volume | N/A |
| Connection Size | 3" |
| Connection Type | NPT |
| Diameter | 30" |
| Height | 72" |
| Material of Construction | Carbon Steel / Black Steel Tank |
| Temperature Range | Up to 400°F |
| Volume | 200 Gal |
| Weight | Not listed |
| Working Pressure - MAX | 125 PSI |
| Volume | 200 Gal |
